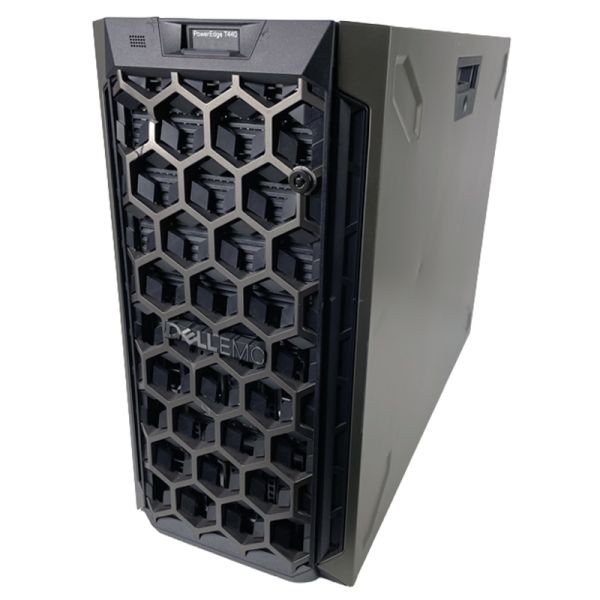

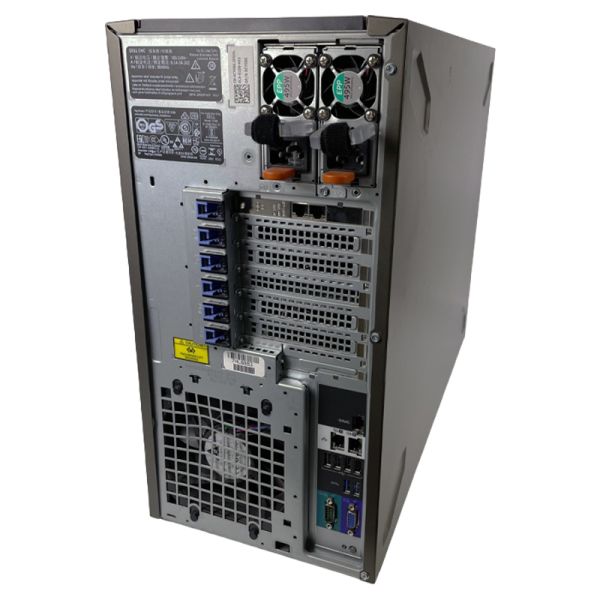

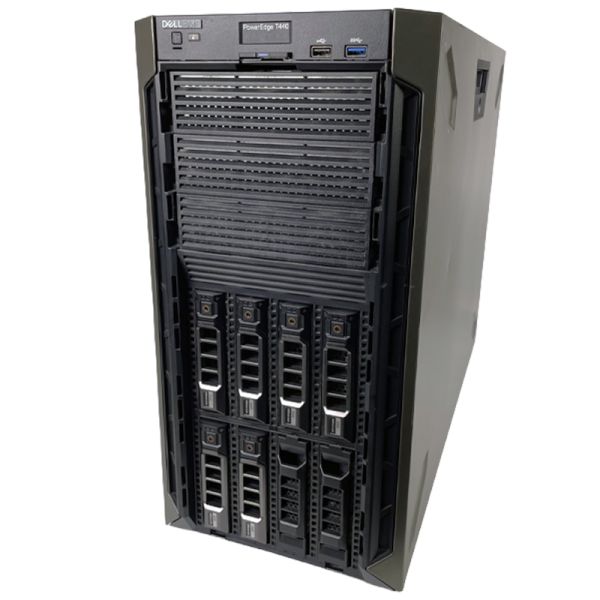

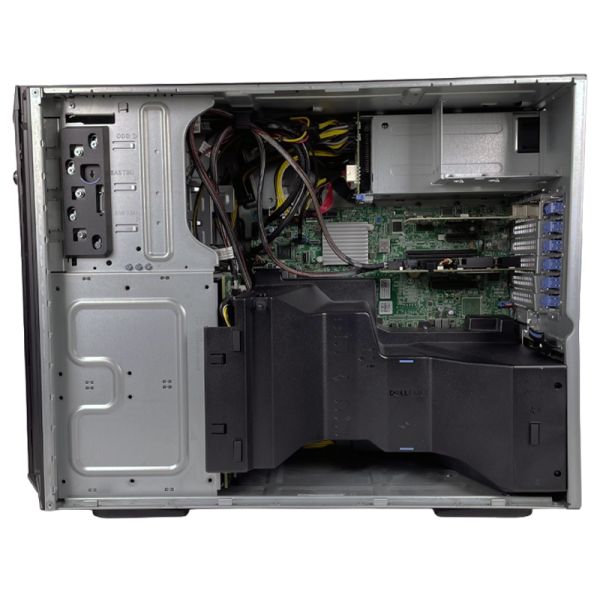

High-performance enterprise network server with Intel Xeon processors and DDR4 RAM, offering reliable computing power for business infrastructure needs.
| Processor |
Up to two 2nd Generation Intel Xeon Scalable processors, up to 16 cores per processor |
| Memory |
16 DDR4 DIMM slots, Supports RDIMMs/LRDIMMs, speeds up to 2666MT/s, 1TB max capacity
Supports registered ECC DDR4 DIMMs only |
| Storage Controllers |
Internal controllers: PERC H330, H730P, H740P, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
External HBAs (non-RAID): 12 Gbps SAS HBA
|
| Drive Bays |
Up to 8 x 3.5" SAS/SATA (HDD/SSD) max 128TB or
Up to 16 x 2.5" SAS/SATA (HDD/SSD) max 61TB
|
| Power Supplies |
495W, 750W, 1100W hot-plug; Gold efficiency
450W Cabled AC PSU
Up to 2 fans
|
| Sizing |
Form factor: Tower or rack, 5U
Chassis max depth: 594.82 mm
|
| Management |
iDRAC9, iDRAC Direct, Optional security bezel |
| Consoles & Mobile |
OpenManage Enterprise, OpenManage Power Manager, OpenManage Mobile |
| Integrations |
OpenManage integrations: Microsoft System Center, VMware vCenter, BMC Software |
| Connections |
OpenManage connections: Nagios & Nagios XI, HP Operations Manager i (OMi) |
| Tools |
Dell EMC Repository Manager, Dell EMC Update Package, Dell EMC System Update,
Dell EMC Server Update Utility, iDRAC Service Module, iDRAC REST API with Redfish,
OpenManage Server Administrator, OpenManage Storage Services
|
| Security |
TPM 1.2/2.0 optional, Cryptographically signed firmware, Silicon Root of Trust,
Secure Boot, System Lockdown (requires iDRAC Enterprise or Datacenter), System Erase
|
| I/O & Ports |
2 x 1GbE LOM, 1 dedicated iDRAC port, 9 x USB (5 x USB 2.0, 4 x USB 3.0),
including one internal USB port, 1 VGA video port and 1 serial port,
Up to 5 PCIe Gen3 slots
|
| GPU |
1X NVIDIA NVS 310, 1X NVIDIA Quadro P4000 |
| Supported Operating Systems |
Canonical Ubuntu LTS, Citrix Hypervisor, Microsoft Windows Server LTSC with Hyper-V,
Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
|
