RAM : Up to 16 DIMM sockets (8 DIMMs per processor; 6 memory channels per processor with one DIMM per channel for four channels and two DIMMs per channel for two channels). Support for RDIMMs or LRDIMMs. Memory types cannot be intermixed. Memory speed up to 2933
Packaging Details : Carton with waterproof warpped
MOQ : 1
Supply Ability : Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated
Drive Bays : 4 LFF SATA Simple Swap drive bays 4 LFF SAS/SATA hot-swap drive bays 8 SFF SAS/SATA hot-swap drive bays 10 SFF hot-swap drive bays: 6x 2.5" SAS/SATA & 4x 2.5" AnyBay
Price : USD 1,500-3,999/pcs
type : Rack
Model Number : SR570
Payment Terms : T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Delivery Time : Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated
processor : Up to two Intel Xeon Bronze, Silver, Gold, or Platinum Gen 2 processors of up to 150 W TDP: Up to 24 cores (2.1 GHz core speeds). Up to 3.8 GHz core speeds (4 cores). Two UPI links up to 10.4 GT/s each. Up to 35.75 MB cache. Up to 2933 MHz memory speed. 1s
From Factor : 1U rack-mount
Network : 2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support) Onboard LOM slot for up to 4x 1/10 Gb Ethernet ports: 2x 1 GbE RJ-45 ports (no 10/100 Mb support) 2x 10 GbE RJ-45 ports (no 10/100 Mb support) 2x 10 GbE SFP+ ports (no 10/100 Mb support) Optional Mezza
Place of Origin : China
| Form Factor | 1U rack-mount |
|---|---|
| Processor | Up to two Intel Xeon Bronze, Silver, Gold, or Platinum Gen 2 processors (up to 150W TDP) Up to 24 cores (2.1 GHz core speeds) Up to 3.8 GHz core speeds (4 cores) Two UPI links up to 10.4 GT/s each Up to 35.75 MB cache Up to 2933 MHz memory speed 1st Gen Intel Xeon processors also supported |
| Memory | Up to 16 DIMM sockets (8 DIMMs per processor) Support for RDIMMs or LRDIMMs Memory speed up to 2933 MHz Memory capacity up to 1 TB with 16x 64 GB RDIMMs |
| Drive Bays | 4 LFF SATA Simple Swap drive bays 4 LFF SAS/SATA hot-swap drive bays 8 SFF SAS/SATA hot-swap drive bays 10 SFF hot-swap drive bays: 6x 2.5" SAS/SATA & 4x 2.5" AnyBay |
| Internal Storage Capacity | 2.5-inch drives: Up to 307.2TB with SSDs or 24TB with HDDs 3.5-inch drives: Up to 80TB with HDDs or 61.44TB with SSDs |
| Network Interfaces | 2x Integrated 1 GbE RJ-45 ports Onboard LOM slot for up to 4x 1/10 Gb Ethernet ports Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards 1x RJ-45 10/100/1000 Mb Ethernet systems management port |
| Power Supply | Up to two redundant hot-swap 550W or 750W AC power supplies High Efficiency Platinum or Titanium ratings HVDC support (PRC only) |
| Dimensions | Width: 435 mm (17.1 in.), Height: 43 mm (1.7 in.), Depth: 750 mm (29.5 in.) |
| Weight | Minimum: 10.2 kg (22.5 lb), Maximum: 16.0 kg (35.3 lb) |
|
|

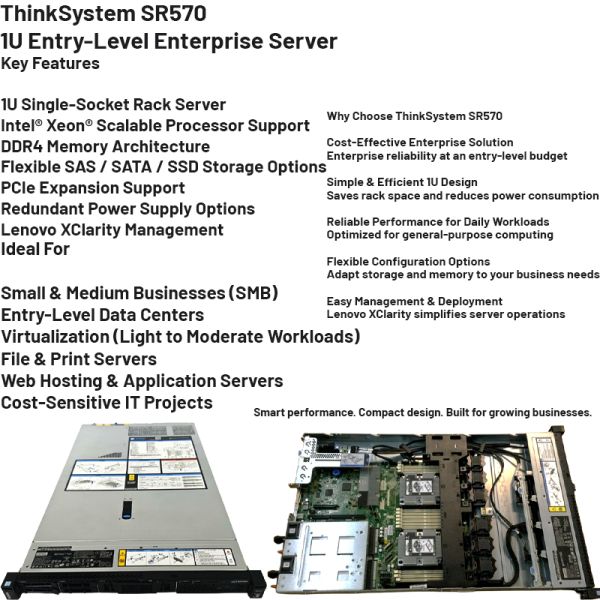

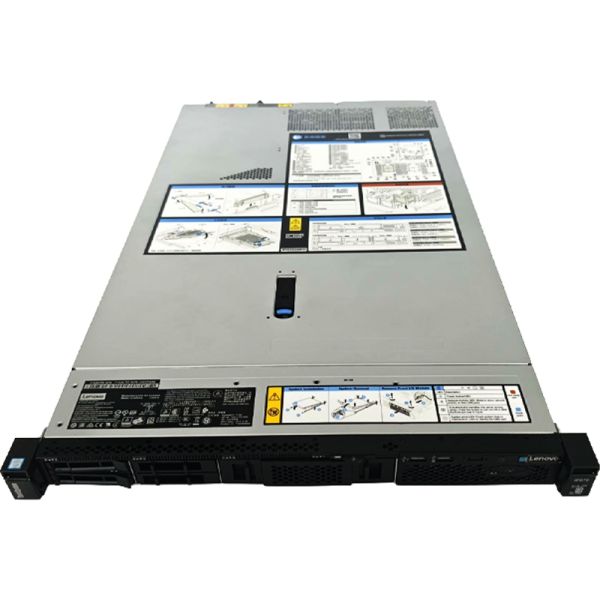

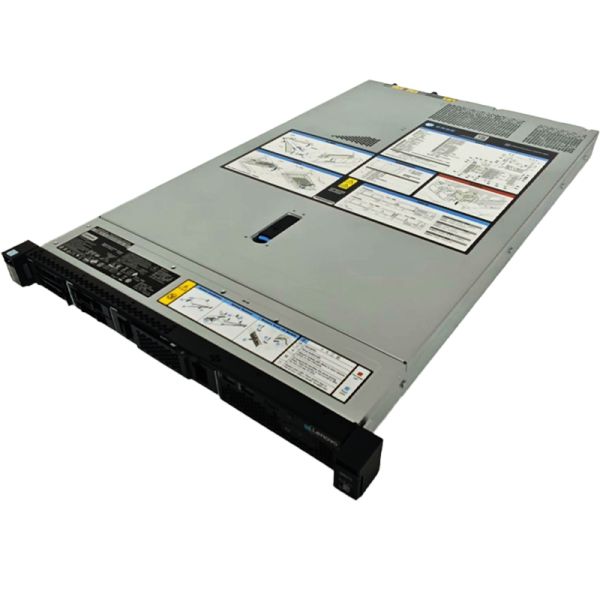

Lenovo ThinkSystem SR570 1U Rack Server with Intel Xeon Processor and DDR4 Memory Images |
